The TDTI Advantage

The quality of the wires has a direct impact on the performance and this is quite evident when two wires are put to the test. In 5000 hours, TDTI’s wire cuts (5000 hrs x 3 sqm/hour) = 15000 sqm but other wires cuts (5000 hrs x 2 sqm/hour) = 10000 sqm.

This efficiency also translates to cost saving. For every 100 metres of TDTI’s wire you save the expenditure on diesel, oil change and maintenance of machinery every 5000 hours.

Thus with TDTI’s improved cutting solutions you save on:

The cost of fuel spent on wire saw machineries.
• The expense on maintaining your machinery including spare parts.
• Time you spend on production.
• Investment on stock.

TDTI Offers

Rapid Delivery:  With an area of 10,000 sq.ft. at the factory in Hosur, TDTI has connectivity to deliver the wire to any part of India within 48 hours time.

Reasonable Prices:  TDTI sources imported wire in India at a reasonable market price saving you the cost of importing it.

Exceptional Service:  A well experienced and trained service team helps TDTI think ahead in terms of after-sales services to customers. Service personnel come directly to your site to assist you. Service Hotline for your easier access- 09440 20997, 09440 25997.

Performance:   To optimize speed and faster cutting, TDTI’s wire is embedded with beads manufactured with HIP technology, which increases the life of the wire as well the cutting speed.


Granite Name Type Size Fittings No.of Beads/Mtr
Madurai & Sivakasi
Colours.
ICV05 Dia 11/8 mm Plastic with springs 37 - 40
Black Granites ICV05 Dia 11/8 mm Plastic with springs 37 - 40
Paradiso G16 Dia 11/8 mm Plastic with springs 37 - 40
Red Multi & NI RED Indian Arora,
Himalayan Blue.
G26 Dia 11/8 mm Plastic with springs 37 - 40
Tan Brown, Saffire Brown,
Coffee Brown, Saffire Blue
G16 Dia 11/8 mm Plastic with springs 37 - 40
Any Green & Blue G16 Dia 11/8 mm Plastic with springs 37 - 40
Black Galaxy, Steel Grey ICV05v Dia 11/8 mm Plastic with springs 37 - 40


Material Class P/speed (mtr/sec) Cutting Speed/hour Performance/Mtr.
Soft Granite 25 mtr/sec 6 - 8 sqm/hour 12 to 22 sqm/mtr
Medium Granite 23 mtr/sec 4 - 6 sqm/hour 10 to 12 sqm/mtr
Hard Granite 20 mtr/sec 2.5 - 3.5 sqm/hour 6 to 10 sqm/mtr
Sand Stone & Concrete 18 mtr/sec 2 - 3 sqm/hour 4 to 5 sqm/mtr.



Single Wire

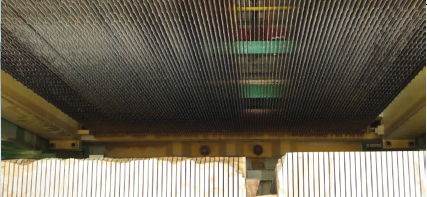

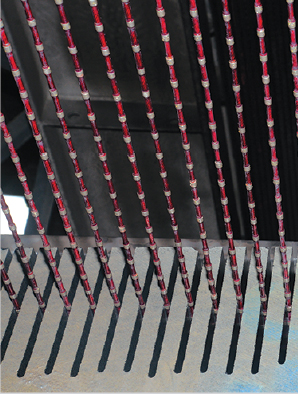

Multi Wire

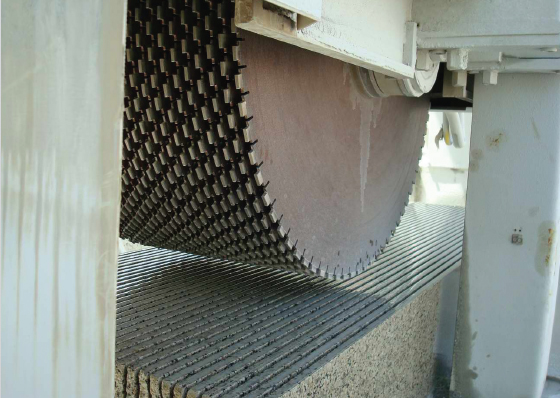

Multi Blades

Marble & Sandstone


Machinery's


Cold Press

Sintering

Wire Plastification

Brazing
